User and Role

RBAC

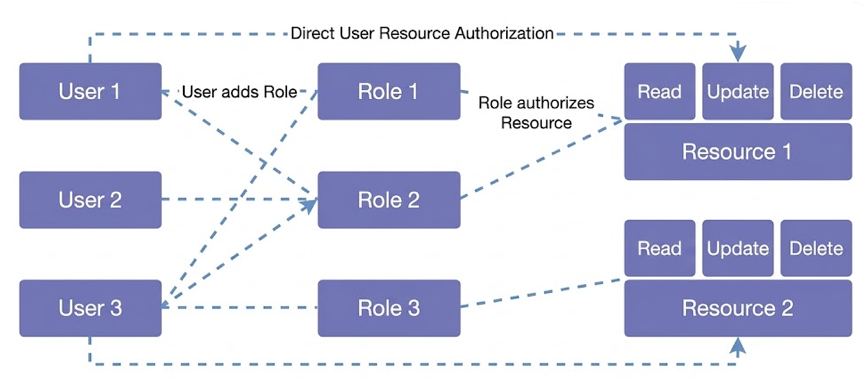

RBAC (Role-Based Access Control) consists of three parts: users, roles, and operations/resources. The access list, also known as the resource list, is assigned to roles/user groups. Granting a user one or more groups gives the user the resource access permissions of those groups. In hybrid mode, resources can be directly assigned to users, which is more flexible for complex and changing business scenarios in internet companies. Since version 1.2, IBI has started to support direct user-based permission assignment.

Permission Management

Correspondingly, the user management interface is also divided into three sections, supporting three view modes: user management / role management / user, role, and resource overview.

Authorizing folder resources has an inheritance effect. If permissions are not set separately for child nodes, child nodes inherit permissions from the parent node.

Features

To simplify user, role, and permission management, we have integrated tasks that originally required multiple operation pages into a single page. In other systems you may have used, there might be one page for user management, one for role management, and another for role permission management. To view the combined permissions of a user assigned multiple roles, one usually had to rely on memory.

In our system, viewing, adding, editing, and permission management are unified on a single page, avoiding switching between different interfaces, thus providing a WYSIWYG user experience!

The following explanations can resolve doubts you may have about operations. Under normal circumstances, we believe you can get started quickly without documentation.

Three Operation Modes

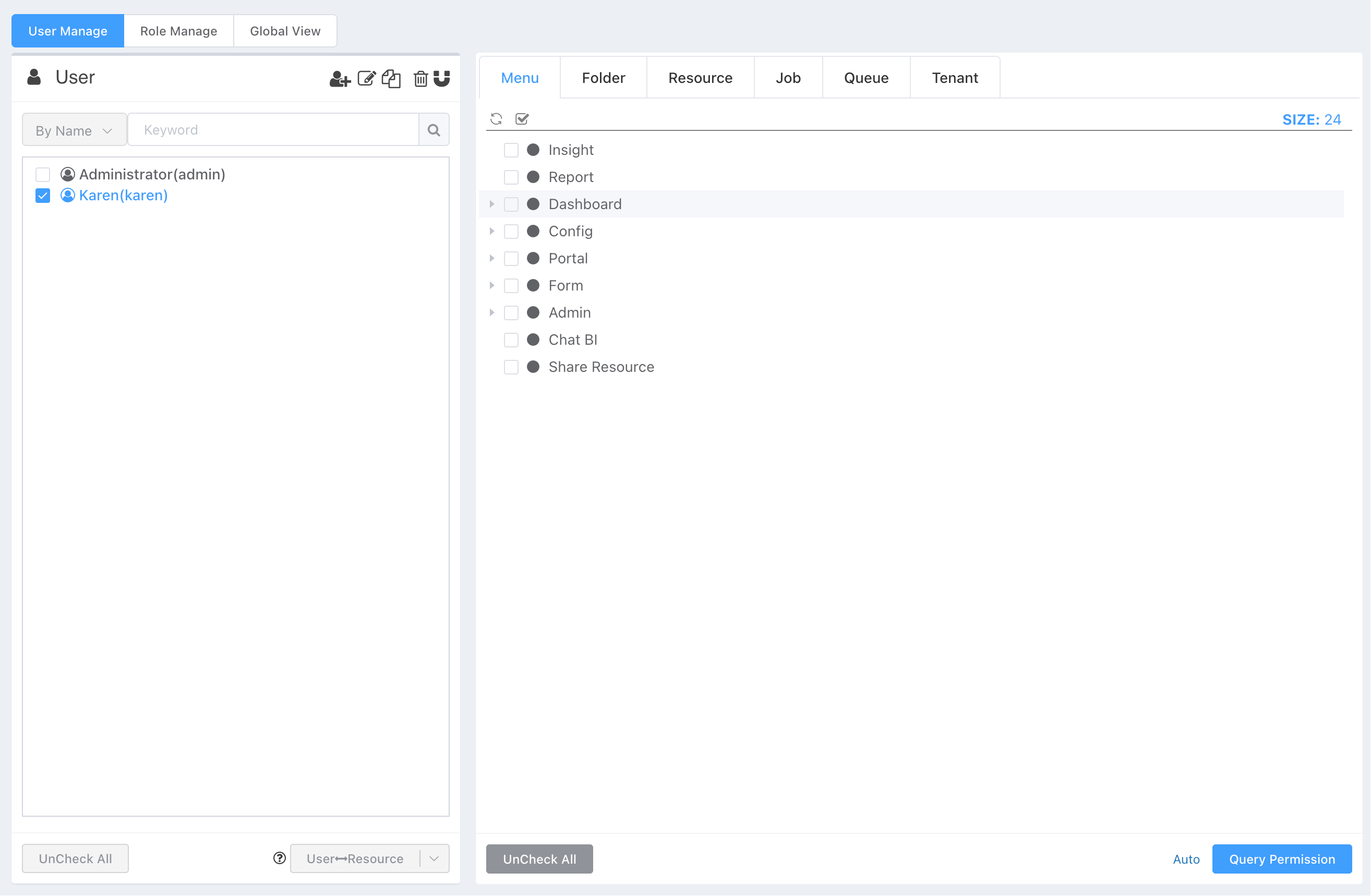

Mode 1: User Management

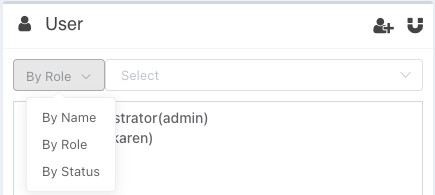

In user management mode, you can see two panes: the left pane is the user list, and the right pane is the resource list. In this mode, you can:

• Manage and edit user information.
• View the direct relationship between users and resources.
• Update user permissions.

• The resource pane monitors the user selection status. When a single user is selected, the right pane synchronizes with the selected user, achieving the function of querying user permissions.
• Selecting multiple users or deselecting all users cancels all selections in the resource pane.
• When a user has the Menu -> Management -> User Management -> User Resource Management permission, an authorization button appears below the user pane for user authorization:
  • Click the User-Permission button to authorize. The dropdown authorization button allows revoking user permissions.
  • User authorization content is incrementally updated. The system automatically detects if the current authorization exists during new authorization. If it exists, the original authorization is deleted and updated with the current operation's authorization.
  • When switching between multiple tabs in the resource pane, you might forget the selection status of previous tabs. To avoid incorrectly adding or deleting resources from non-current tabs in multi-user state, the authorization content is only for resources under the currently active resource tab.
  • Supports authorizing multiple users at once.

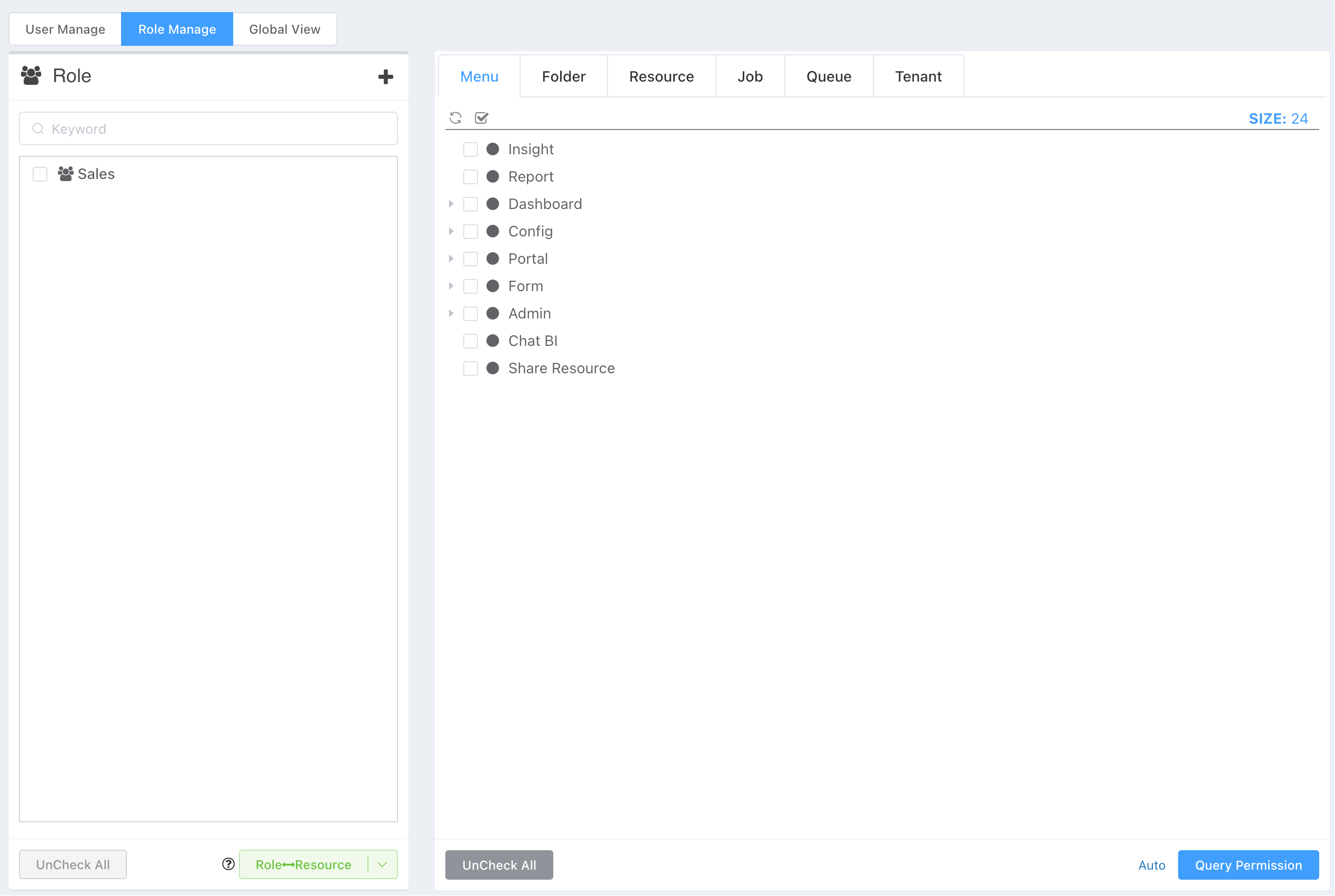

Mode 2: Role Management

In role management mode, you can see two panes: the left pane is the role list, and the right pane is the resource list. In this mode, you can:

• Manage and edit role information.
• View the direct relationship between roles and resources, including permissions for a single role or combined permissions for multiple roles.
• Update permissions for roles.

Resource Pane Synchronization: Unlike user-resource synchronization, when multiple roles are selected, the resource pane displays the combined permissions of all selected roles. This design is because we often assign multiple roles to a user, and showing the combined resources facilitates viewing all accessible resources when a user has multiple roles.

• The resource pane monitors role selection status. When the selected role changes, the resource pane synchronizes with the selected role, achieving the function of querying role permissions.
• Authorization:
  • Click the Update Role Resource Permissions button to authorize. Authorization is full authorization.
  • Currently, only one role's permissions can be updated at a time (future updates will support incremental updates for multiple roles, similar to user management).

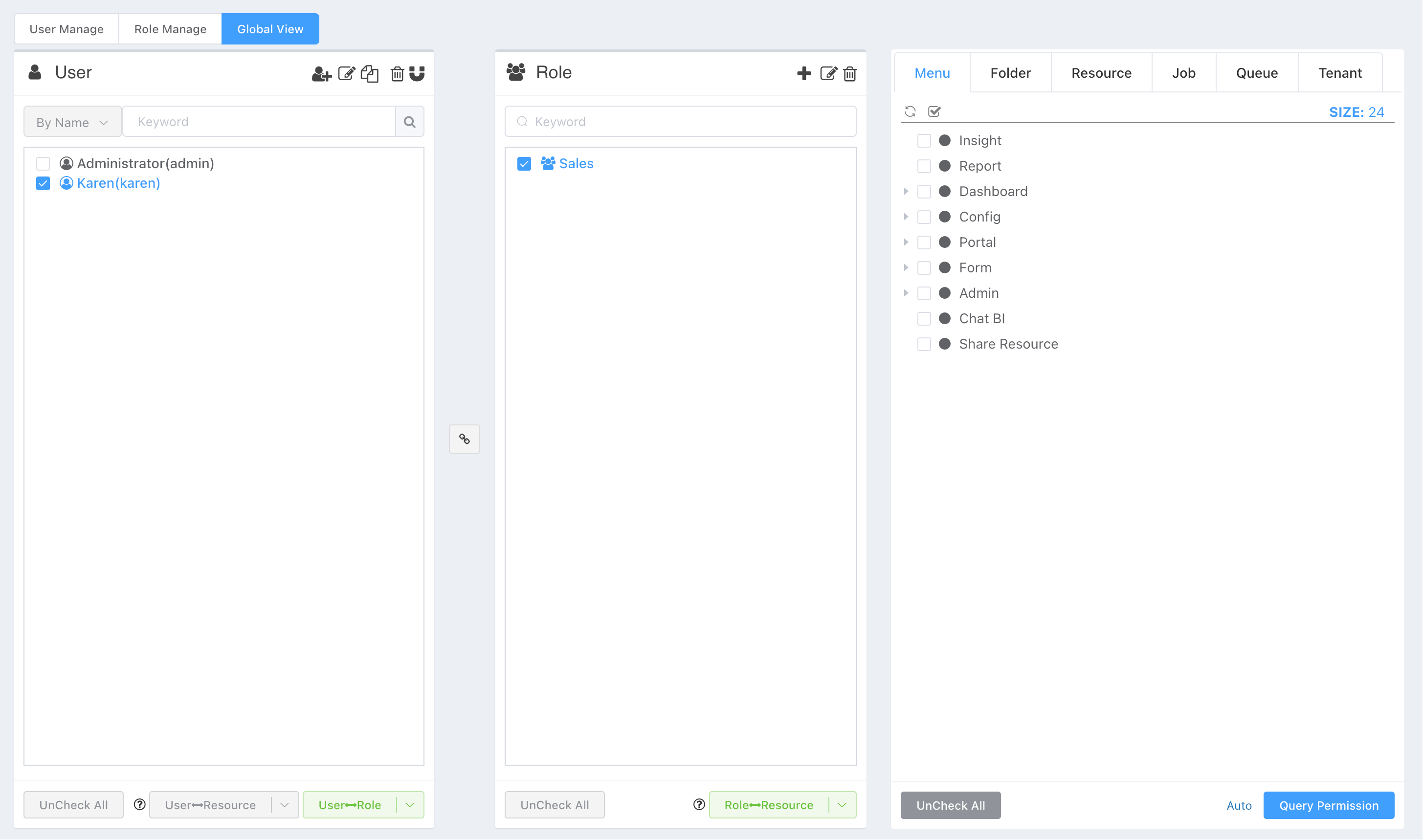

Mode 3: Global View

In permission overview mode, you can see three panes. In this mode, proficient users can even complete all permission-related operations:

1. Perform all user management operations supported in user management mode.
2. Support all role management operations supported in role management mode.
3. Support viewing and managing relationships between users and roles.
4. Support viewing the combined resources directly authorized to the user + resources indirectly authorized through the user's roles.

1. View User Roles and Permissions: Selecting a single user synchronously selects the roles to which the user belongs, making it convenient to view user roles. Simultaneously, all permission lists for that user (including user permissions and combined permissions from roles) are updated in real-time.
2. Query and Modify Direct User Permissions: Deselect user-role synchronization. With a single user selected, the direct relationship between the user and resources updates in real-time, with the same effect as User Management Mode.
3. Modify (Authorize, Revoke) User Roles: Deselect all users. At this point, the real-time synchronization between roles and resources allows management with the same effect as Role Management Mode.
4. Query Role Permissions: When no user is selected, the synchronized selected resources are the permissions of the currently selected role (when a user is selected, permissions directly authorized to the user are mixed in).

When multiple roles are selected, the synchronized selected resources are the combined permissions of all currently selected roles.

Other Management

Data Permission Control

The Enterprise Edition supports setting fine-grained access permissions for roles, with control down to the cell level. Here are detailed operation instructions:

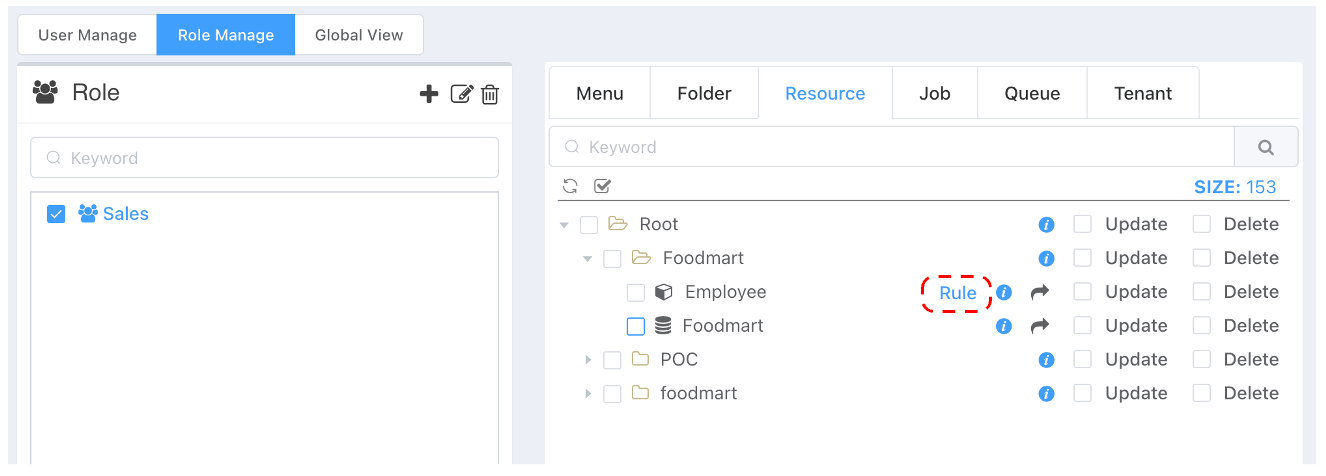

Suppose we have two sales teams in different regions, the US Group and the Canada Group. The administrator wants each group to only see their own data. In the role pane, select the US Group, select the dataset that needs rule addition, and right-click Rule.

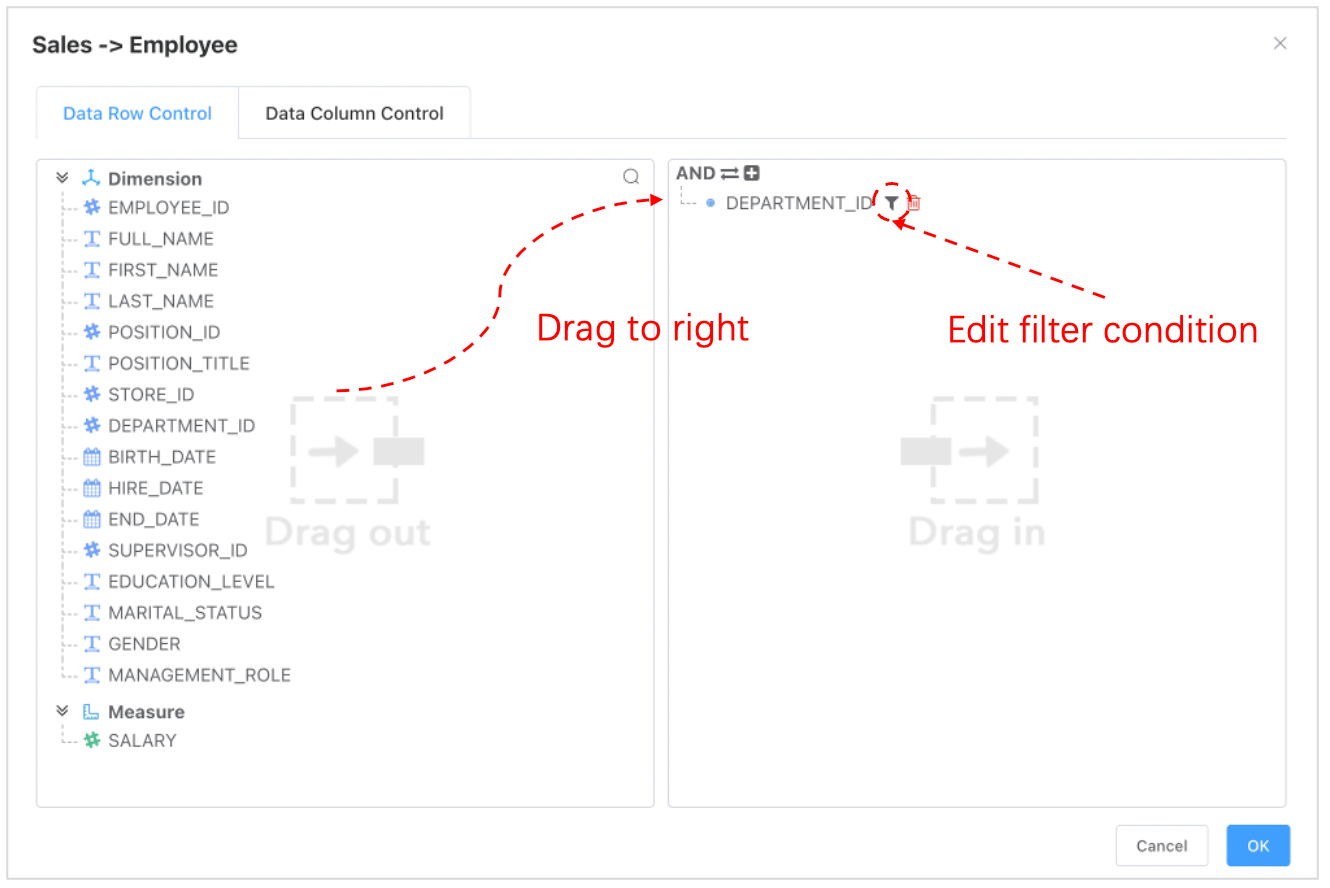

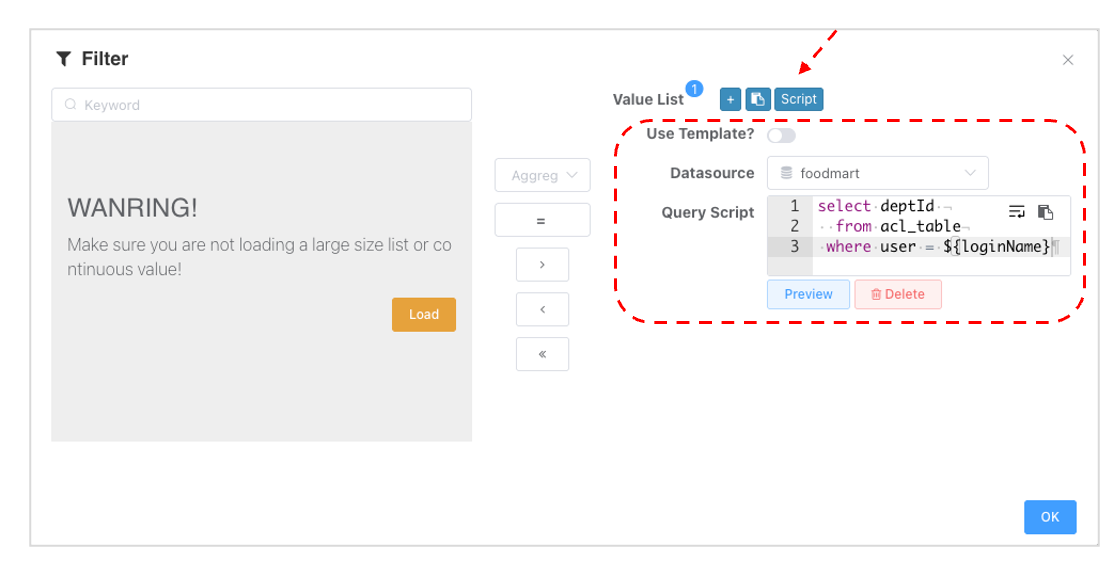

An interactive box pops up. The left side lists all columns under the dataset. Drag a column to the AND node, then click the edit button to enter a field filtering window similar to the one used during chart design:

Query Dimension Members

The difference between dimension member filtering settings here and in self-service analysis is that dimension member settings here support dynamic query scripts. Imagine that your company might have maintained a set of user and business data permission management tables in other systems before introducing the BI system. Here, you can conveniently import external relationships from other systems into the BI system through dynamic queries, allowing multiple systems in your company to share a set of permission data.

Common query variables supported for dynamic queries include:

When dimension member filtering for a role becomes dynamic data, the role itself can be used as a variable rule. For example, originally, a role needed to be created for users in each country, then selecting the visible country dimension members for that role (e.g., Food Market - Canada Group, Food Market - US Group, etc.) can be unified into a dynamic rule group Country Filter Rule Group.

select deptId
  from acl_table
 where user = ${loginName}

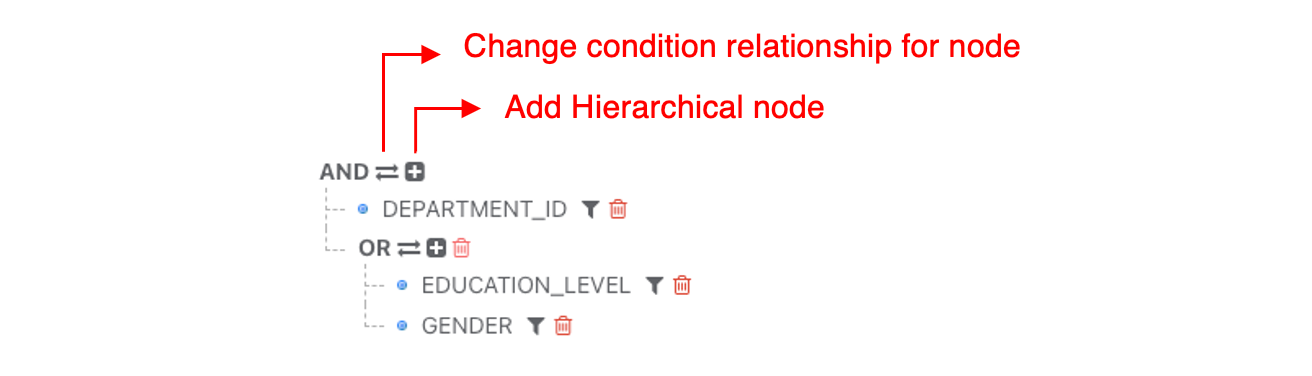

Additionally, you can also:

• Add filters for multiple fields.
• Switch the relationship between multiple nodes at the same level to AND or OR.
• Add multi-level nodes.

Field Visibility Control

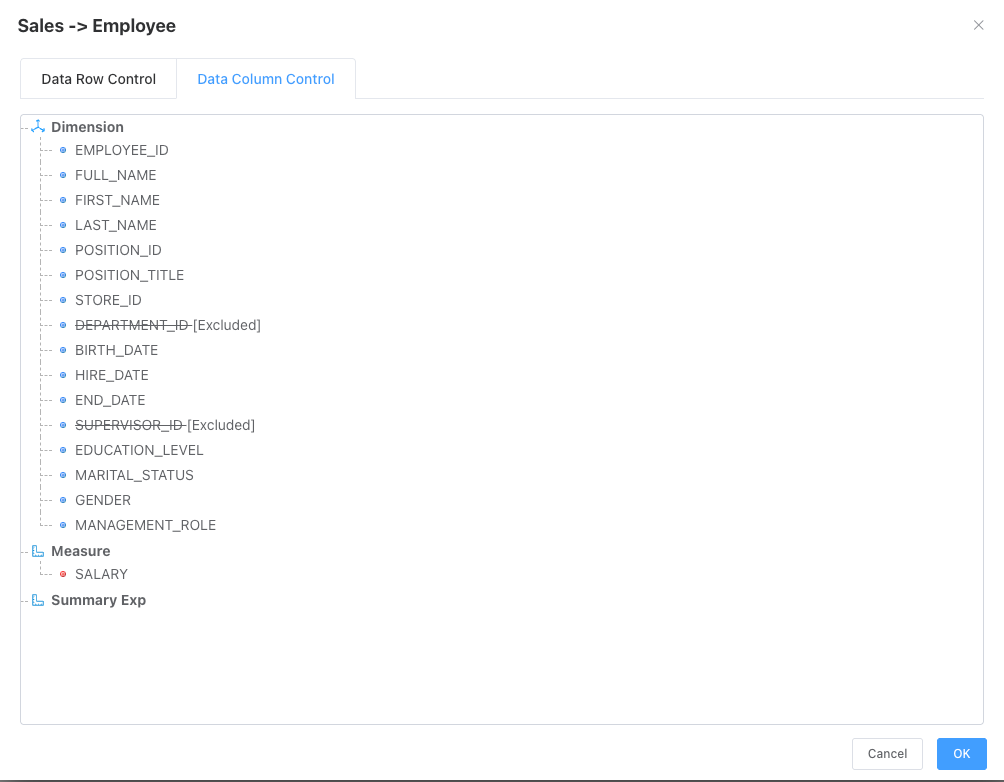

Switch to the Exclude tab. You can also control the visibility of model nodes (including: hierarchies, dimensions, metrics, expressions, and filters) for that role. As shown below, configuring that the Sales Role cannot see DEPARTMENT_ID when using the dataset.

User-Based Data Control

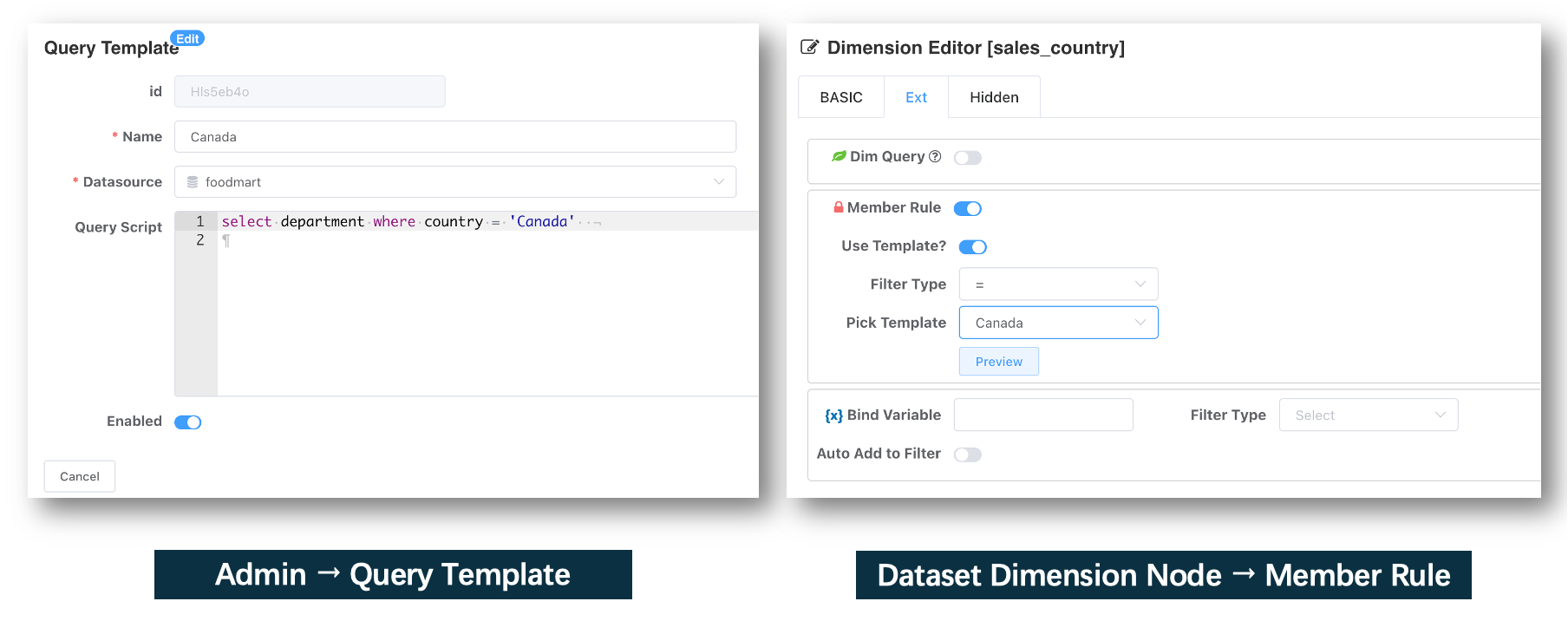

Dataset permission templates can control data access permissions for different users on datasets. Query templates can query external system permission data, making it convenient to integrate BI system permissions with external system permissions.

Operation Steps:

• Edit a dimension node and turn on the permission rule switch in the advanced configuration panel.
• You can use direct queries: select the data source connection where permission data resides -> write a query. The query can distinguish user permission scopes using the ${loginName} variable. The first column of the query is the data range limited by the current dimension.
• You can also use predefined templates from permission templates (query templates).
  • Query templates can currently only be uniformly configured by administrator accounts. Configuration path: Management → Permission Templates.
