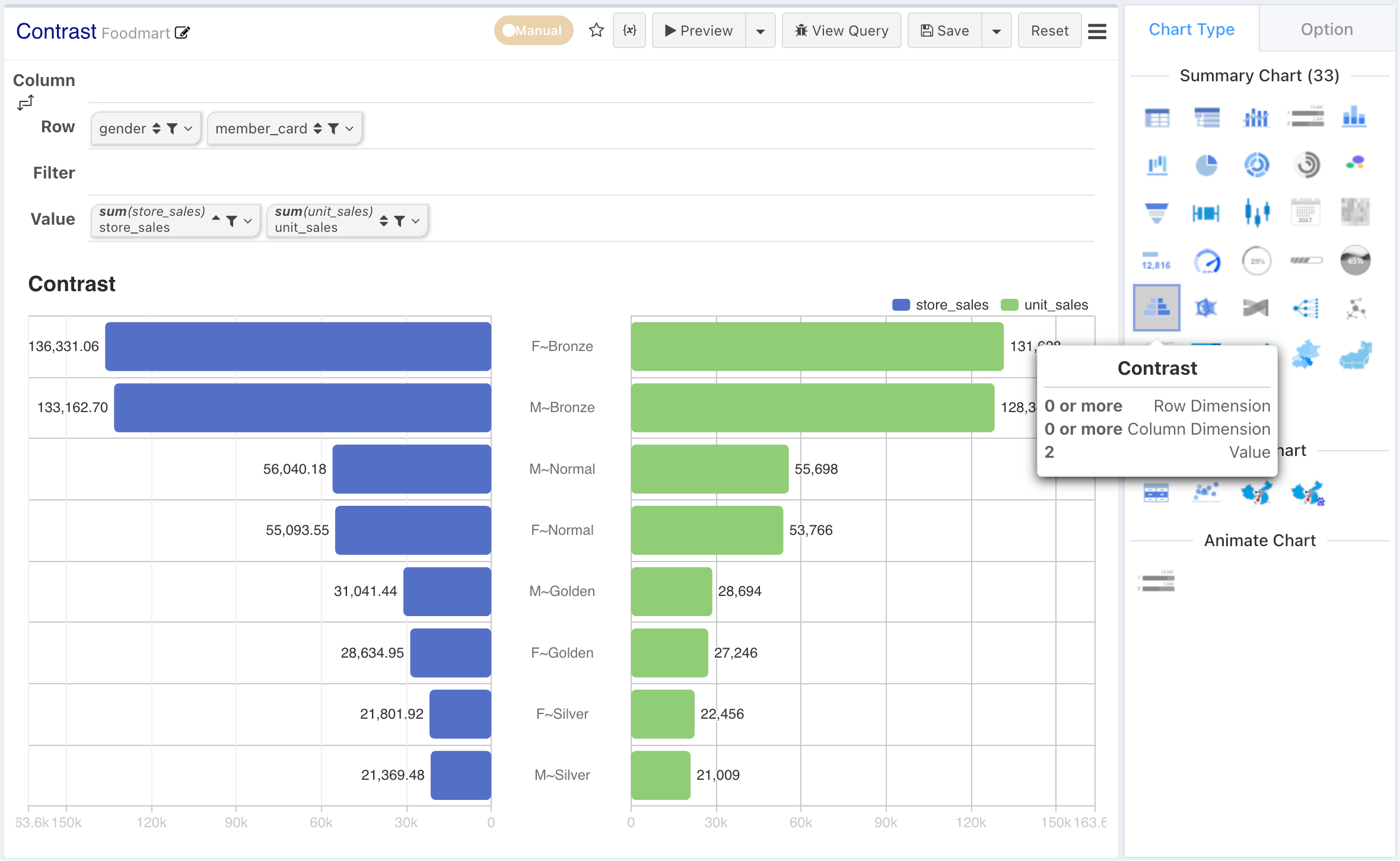

Contrast Bar Chart

Contrast bar charts plot two measures side by side per category, for direct period-over-period or plan-versus-actual comparison.

The contrast bar chart, also known as a back-to-back bar chart, is a type of bar chart displayed in a mirrored format. It is primarily used to show comparative analysis of two metrics under the same dimension, making it easier to visualize the contrast and differences.

Design AreaChartRequirement
Row DimensionsY-axisCan only place one or more dimension nodes
Column DimensionsMetric Split/StackCan only place one or more dimension nodes
Metrics2 contrasting metricsCan only place two metric nodes

Layout

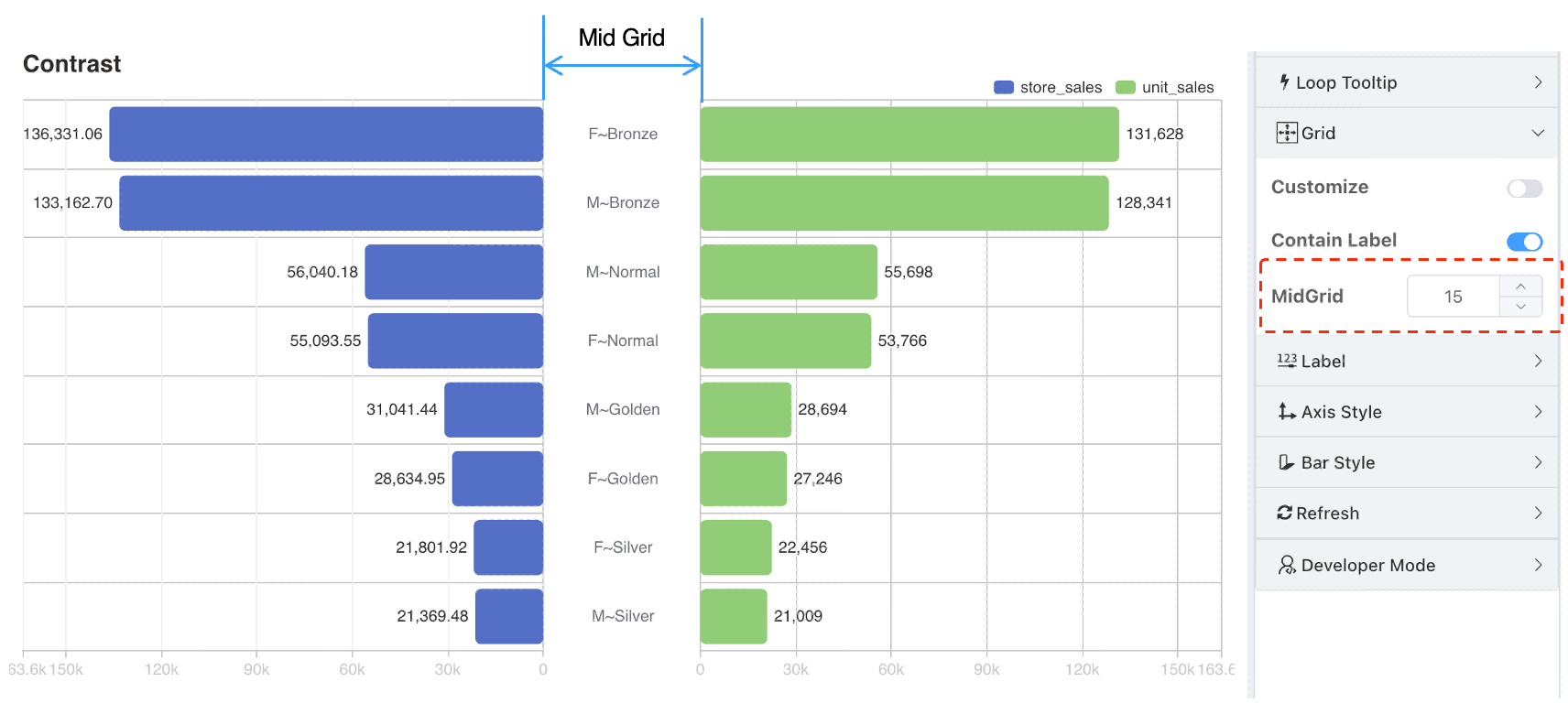

Middle Grid Width

Gauge

Gauge charts show one value against a scale with colour-coded ranges, for thresholds such as SLA attainment or capacity.

Radar Chart

Radar charts compare several entities across the same set of axes, for skill, performance, and multi-criteria profiles.

On this page

LayoutMiddle Grid Width
